我的 dsm 上 Nginx Proxy Manager 配置

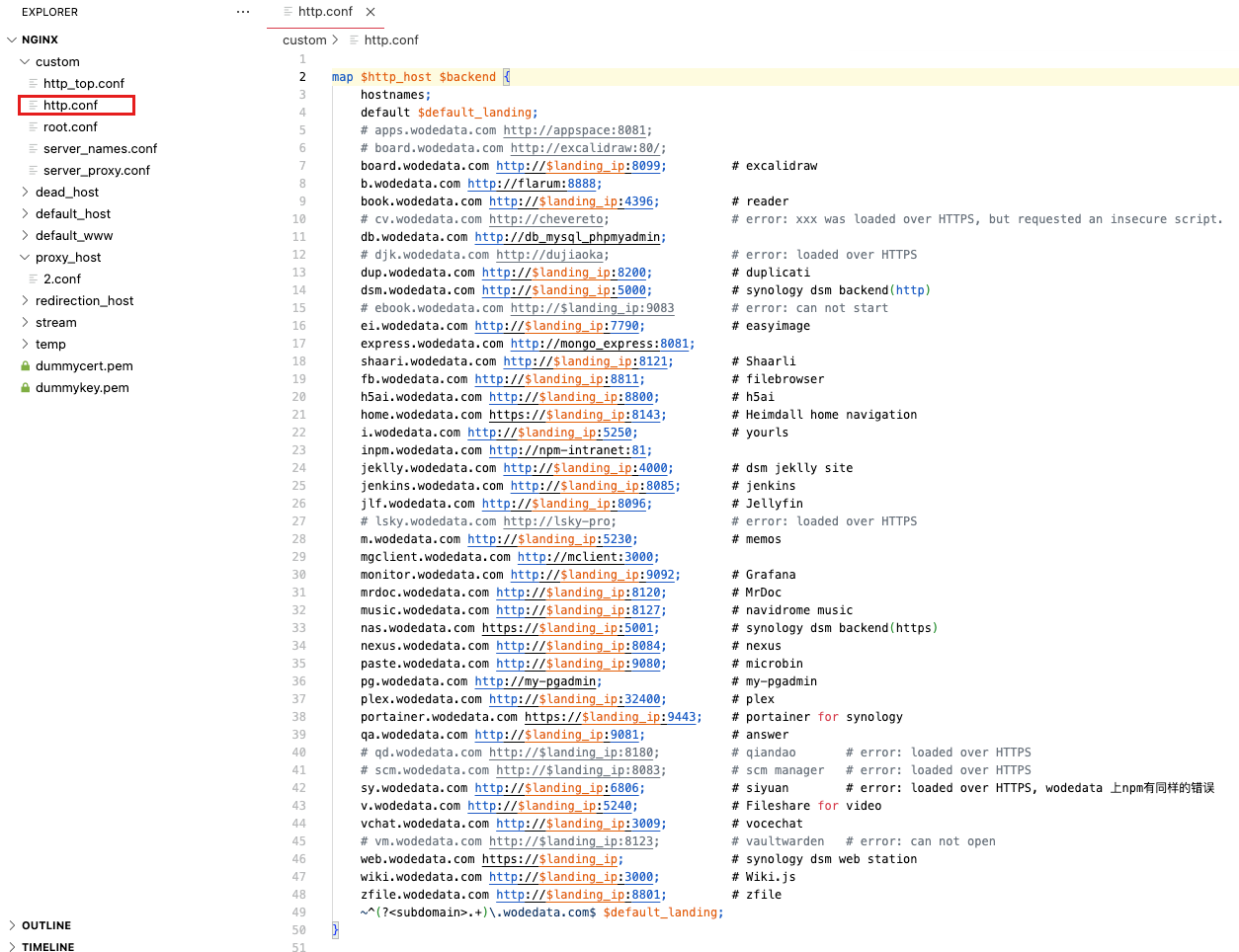

以下是 custom/http.conf 配置
map $http_host $backend {
hostnames;
default $default_landing;
# apps.wodedata.com http://appspace:8081;
# board.wodedata.com http://excalidraw:80/;
board.wodedata.com http://$landing_ip:8099; # excalidraw
b.wodedata.com http://flarum:8888;
book.wodedata.com http://$landing_ip:4396; # reader
# cv.wodedata.com http://chevereto; # error: xxx was loaded over HTTPS, but requested an insecure script.
db.wodedata.com http://db_mysql_phpmyadmin;
# djk.wodedata.com http://dujiaoka; # error: loaded over HTTPS
dup.wodedata.com http://$landing_ip:8200; # duplicati
dsm.wodedata.com http://$landing_ip:5000; # synology dsm backend(http)
# ebook.wodedata.com http://$landing_ip:9083 # error: can not start
ei.wodedata.com http://$landing_ip:7790; # easyimage
express.wodedata.com http://mongo_express:8081;
shaari.wodedata.com http://$landing_ip:8121; # Shaarli
fb.wodedata.com http://$landing_ip:8811; # filebrowser
h5ai.wodedata.com http://$landing_ip:8800; # h5ai
home.wodedata.com https://$landing_ip:8143; # Heimdall home navigation
i.wodedata.com http://$landing_ip:5250; # yourls
inpm.wodedata.com http://npm-intranet:81;
jeklly.wodedata.com http://$landing_ip:4000; # dsm jeklly site
jenkins.wodedata.com http://$landing_ip:8085; # jenkins
jlf.wodedata.com http://$landing_ip:8096; # Jellyfin
# lsky.wodedata.com http://lsky-pro; # error: loaded over HTTPS
m.wodedata.com http://$landing_ip:5230; # memos
mgclient.wodedata.com http://mclient:3000;
monitor.wodedata.com http://$landing_ip:9092; # Grafana
mrdoc.wodedata.com http://$landing_ip:8120; # MrDoc
music.wodedata.com http://$landing_ip:8127; # navidrome music
nas.wodedata.com https://$landing_ip:5001; # synology dsm backend(https)
nexus.wodedata.com http://$landing_ip:8084; # nexus
paste.wodedata.com http://$landing_ip:9080; # microbin
pg.wodedata.com http://my-pgadmin; # my-pgadmin
plex.wodedata.com http://$landing_ip:32400; # plex
portainer.wodedata.com https://$landing_ip:9443; # portainer for synology
qa.wodedata.com http://$landing_ip:9081; # answer
# qd.wodedata.com http://$landing_ip:8180; # qiandao # error: loaded over HTTPS
# scm.wodedata.com http://$landing_ip:8083; # scm manager # error: loaded over HTTPS
sy.wodedata.com http://$landing_ip:6806; # siyuan # error: loaded over HTTPS, wodedata 上npm有同样的错误
v.wodedata.com http://$landing_ip:5240; # Fileshare for video
vchat.wodedata.com http://$landing_ip:3009; # vocechat
# vm.wodedata.com http://$landing_ip:8123; # vaultwarden # error: can not open
web.wodedata.com https://$landing_ip; # synology dsm web station
wiki.wodedata.com http://$landing_ip:3000; # Wiki.js
zfile.wodedata.com http://$landing_ip:8801; # zfile
~^(?<subdomain>.+)\.wodedata.com$ $default_landing;
}
# server {
# listen 80;
# listen [::]:80;
# server_name *.wodedata.com;
#
# return 301 https://$host$request_uri;
# }
server {
listen 80;
listen [::]:80;
listen 443 ssl http2;
listen [::]:443 ssl http2;
server_name *.wodedata.com;
# Custom SSL
ssl_certificate /data/custom_ssl/npm-1/fullchain.pem;
ssl_certificate_key /data/custom_ssl/npm-1/privkey.pem;
# Force SSL
include conf.d/include/force-ssl.conf;
access_log /data/logs/proxy-host-http_access.log proxy;
error_log /data/logs/proxy-host-http_error.log warn;
set $default_landing "https://wodedata.com";
set $landing_ip "10.10.10.7";
# set $landing_ip "192.168.2.8";
location / {
proxy_pass $backend;
proxy_set_header Host $host;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $remote_addr;
# proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
}
